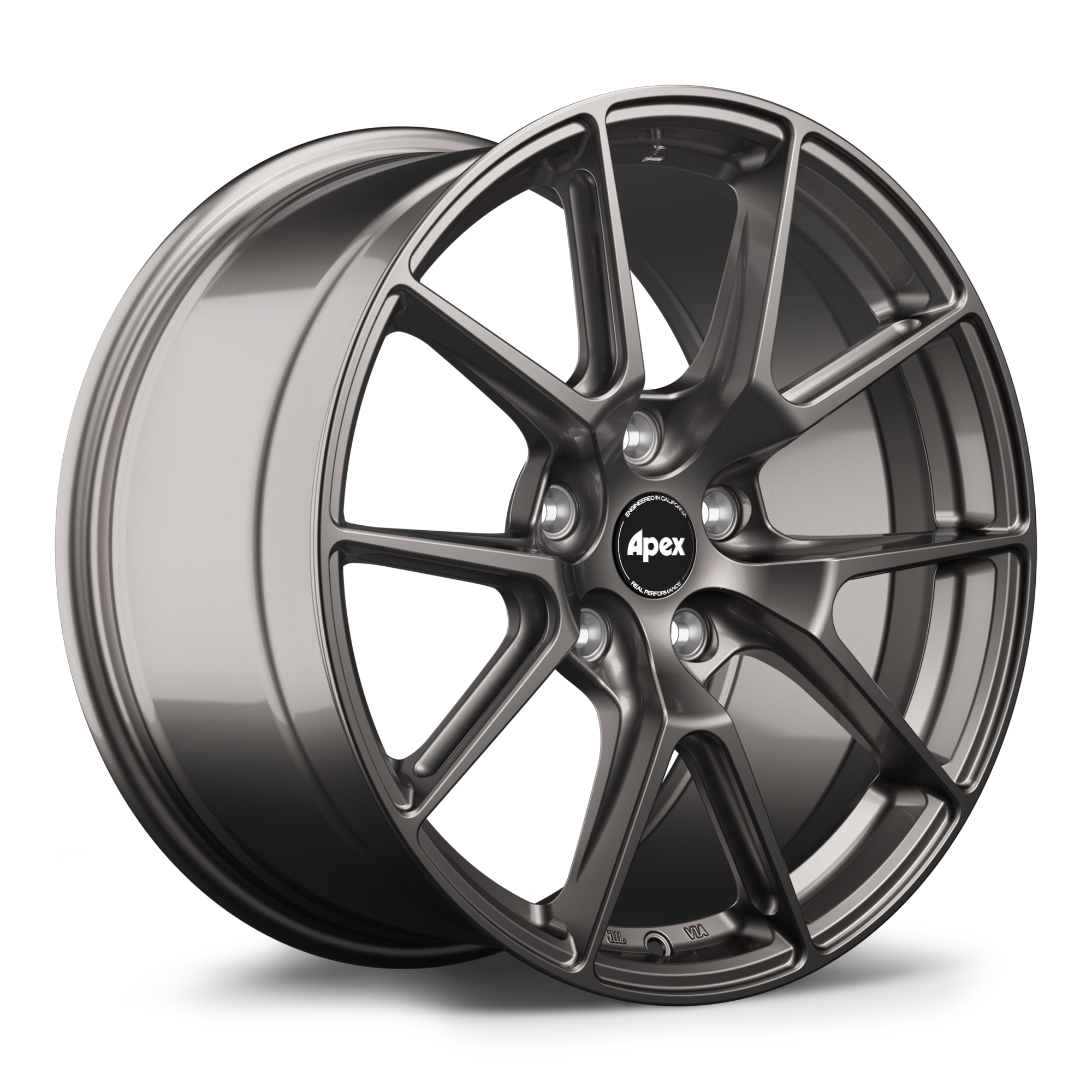

APEX VS-5 Evolution Line | 18" x 8.5" ET40 | 5x120mm | 72.56mm
APEX Race Parts designs and manufactures high performance, flow-formed and forged wheels for a growing list of vehicle makes. They are constantly expanding their product line with new wheel designs, wheel accessories and other performance and race parts. It is their mission to produce and distribute high-quality performance parts that meet the demands of racing and street performance enthusiasts.
The APEX VS-5 is part of the Evolution Line of flow formed wheels and represents one of the lightest and strongest designs in the APEX flow formed range. Developed with motorsport engineering principles, the VS-5 combines lightweight construction, reinforced durability, and precision flow forming technology. The result is a wheel that offers outstanding performance and value, making it ideal for both spirited street driving and regular track use.
VS-5 HIGHLIGHTS
Iconic 5-spoke design
Side-milled spokes for reduced weight
Reinforced inner lip for strength
Massive brake clearance
Ultra-concave face profiles
Independently tested and certified
Unmatched replacement program
Lifetime structural warranty
TECHNICAL SPECIFICATIONS
Model VS-5 Construction Flow Formed Quantity Sold Individually Diameter 18" Width 8.5" Offset ET40 Face Profile Profile 1 (Shallow Concavity) Bolt Pattern 5x120mm Centre Bore 72.56mm Lug Seat 60° Conical Centre Cap Gloss Black OEM Cap Compatible* Load Rating 1,600lbs Weight 19.8lbs (8.98kg) Tested By VIA Test Reference Pending
WHICH WHEELS SHOULD I GET?
APEX Fitment Guides provide the most detailed and authoritative resource for selecting wheels and tyres. Each guide is tailored to your specific vehicle and driving style, helping you choose the perfect fit with confidence. EXPLORE BMW FITMENT GUIDES →
Please feel free to get in touch with us if you’re unsure whether this wheel is compatible with your model.
VS-5 FEATURES
ICONIC 5-SPOKE DESIGN
The VS-5 brings the aggressive styling of APEX’s iconic forged VS-5RS to a flow-formed wheel. At a fraction of the price of its forged counterpart, the VS-5 delivers performance well beyond expectations and maximises the potential of flow-formed technology. With nearly two decades of experience developing track-ready flow-formed wheels, APEX has engineered the VS-5 to provide Real Performance at an exceptional value.
PUSHING THE BOUNDARIES OF FLOW FORMED MANUFACTURING
With a strength-to-weight ratio and features typically reserved for forged wheels, the VS-5 pushes the limits of flow-formed manufacturing. Weighing only 2–2.5 lbs more than its forged sibling, the VS-5 is not just a top-tier option in the flow-formed category — it represents the final step in performance before progressing to a fully forged design.
THE FLOW FORM ADVANTAGE
Flow forming enables APEX to produce high-performance wheels without the price premium of forging. The process improves the mechanical properties and grain structure of the barrel, increasing both strength and stiffness, which allows for less material use and reduced weight. Through advanced engineering, APEX flow-formed wheels achieve a higher load rating than some competitors’ forged wheels.
SIDE-MILLED SPOKES
A key factor in the VS-5’s impressive weight savings, side-milled spokes also enhance its striking appearance. The VS-5 utilises advanced side-milling, where excess material that does not contribute to strength is removed from the sides of the spokes using a precision CNC ball cutter. While this process is often considered cost-prohibitive by other manufacturers, APEX regards it as essential to deliver uncompromised performance.
BIGGER, TOUGHER INNER LIP
The inner lip is the most vulnerable part of a wheel, as it lacks the support of spokes. To address this, APEX’s flow-formed Evolution Line reinforces the inner lip by adding extra material in this critical area, providing greater protection against impacts from track kerbs, potholes, and other road hazards.
MAXIMISING CONCAVITY
APEX uses the deepest concave face profiles possible for every application. The VS-5 utilises three unique profiles to deliver the deepest concave face achievable, helping to reduce weight and provide a stunningly aggressive appearance, while factoring in critical clearances such as brake calipers.
BIG BRAKE CLEARANCE
Big brakes often require bigger, heavier, more expensive wheels, which are not ideal for performance. Leveraging APEX’s expansive library of 3D brake scans, the VS-5’s spoke profiles are specifically designed around critical OE and aftermarket brake calipers. Additionally, APEX flow-formed wheels are designed with a unique 0-degree draft barrel for maximum caliper clearance.
WEIGHT OPTIMISED
APEX conducted extensive Finite Element Analysis (FEA) to reinforce high-stress areas and remove any extra material where it did not improve strength. The result is a wheel that is exceptionally light without the strength compromises typically found on lightweight wheels.
BUILT FOR IMPACT SOCKETS
Track wheels need track tools. Don’t settle for wheels that require undersized tuner lugs or thin walled sockets. All APEX wheels accommodate over-sized race lugs and impact sockets to make swapping wheels lightning fast.
32mm socket diameter clearance.
FINISHING TOUCHES
The VS-5 is finished using a multi-stage liquid paint over a powder-coated base coat. This coating process leaves lug holes, centre bores and mounting pads untouched, which ensures proper fit and torque values.
JWL AND BEYOND
All APEX Flow Formed wheels meet or meaningfully exceed JWL load rating requirements. Some manufacturers don't meet the minimum requirements, yet still claim to be compliant. Always compare load ratings to ensure you aren’t sacrificing critical strength for a slightly lighter wheel.
REAL DRIVERS NEED REAL PERFORMANCE
Not all claims of performance are backed up by facts — and it's a big problem. APEX defines real performance through wheels that are precisely engineered, rigorously tested, and objectively measured. Unlike under-engineered “fashion” wheels that overpromise and underdeliver, APEX wheels are designed for genuine performance, backed by independent testing and verifiable results.
A WHEEL YOU CAN DEPEND ON
LIFETIME WARRANTY
All APEX wheels come with a lifetime structural warranty against defects in workmanship and materials, plus a 12 month finish warranty. Exchanges are fast, easy, and hassle-free. Contact us for full terms and conditions for details.
ACCIDENTAL DAMAGE REPLACEMENT
Curb rash or pothole damage on the street? Make an oopsie at the track? We’ve all been there. APEX is proud to offer 50% off replacement wheels, no matter the damage. Contact us for full terms and conditions or for more details.
ADDITIONAL FEATURES
HUB CENTRIC
VS-5 wheels are purpose built for select vehicle applications. Very few applications require locating rings.
CENTRE CAPS
All APEX wheels come with a gloss black cap included. Unlike its forged counterpart, the VS-5 has limited OE cap support. However, APEX also offers additional colours for select fitments.
WHEEL HARDWARE
APEX wheels can be used with all OEM mounting hardware, proper aftermarket hardware and most wheel spacers. Wheel locks and stud conversion kits also work perfectly.
TPMS
All APEX wheels are compatible with both OEM and aftermarket Tyre Pressure Monitoring Systems (TPMS), as well as standard-fit valve stems.
SO, WHY CHOOSE THE VS-5?
The APEX VS-5 offers the perfect balance of strength, lightness, and value in a flow formed design. With reinforced durability, brake clearance, independent testing, and APEX’s renowned replacement programme, the VS-5 is built for enthusiasts who demand true performance without compromise.
