Whether small car, compact model, sports car or muscle car, with the suspension products and components from ST you can turn your car into a real game changer. State-of-the-art suspension technology backed by KW engineering, a strong price-performance ratio and a wide range of customisation options give you exactly the driving experience you want – and make ST the first choice for anyone who wants more.
Damping Adjustment: Rebound And Compression Adjustment
Material: Galvanised Steel
Adjustment FA/RA: Thread/Thread
Approval: Part Approval (§19.3)
Front Axle Load: Up To 1,005 kg
Rear Axle Load: Up To 860 kg
Compression Adjustment: 16 Clicks
FITMENT & REQUIREMENTS
Suitable for MINI F56 3-Door Hatch (One, One D, One First, Cooper, Cooper D, Cooper S, Cooper SD, John Cooper Works, John Cooper Works GP) models only. Refer to the model/variant list at the bottom of this page for full compatibility.
For rear axle camber adjustment, installation of a vehicle-specific KW adjustable control arm set is recommended. KW Part-no. 68510131.
18202208AG: For vehicles without factory electronic damping (EDC).
18202208AH: For vehicles with factory electronic damping (EDC). Electronic damping control must be deactivated. A suitable KW deactivation kit is NOT included.
WHAT'S INCLUDED

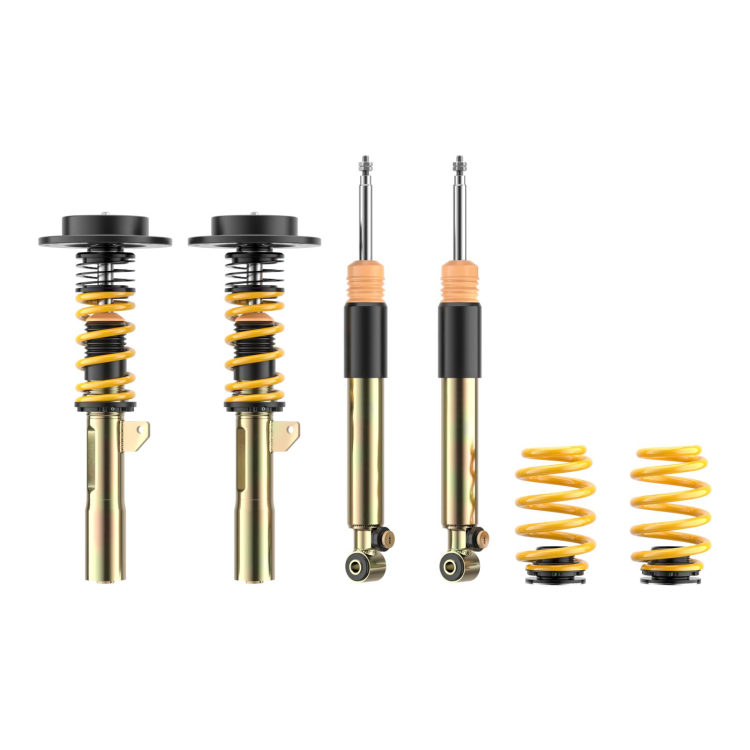

Set FA coilover struts incl. top mounts + RA coilover struts.
OPTIONAL ACCESSORIES
18202208AH: KW EDC Cancellation Kit (68510477) — sold separately. Required for vehicles with factory electronic damping (EDC).
Images are for illustration purposes only. The appearance and components shown may vary for your vehicle.
Make your ST suspension your own with your choice of spring colour and a personalised marking. Create a finish that reflects your style, with customisation available on selected ST coilover and height-adjustable spring kits. Lowering has never been so individual.

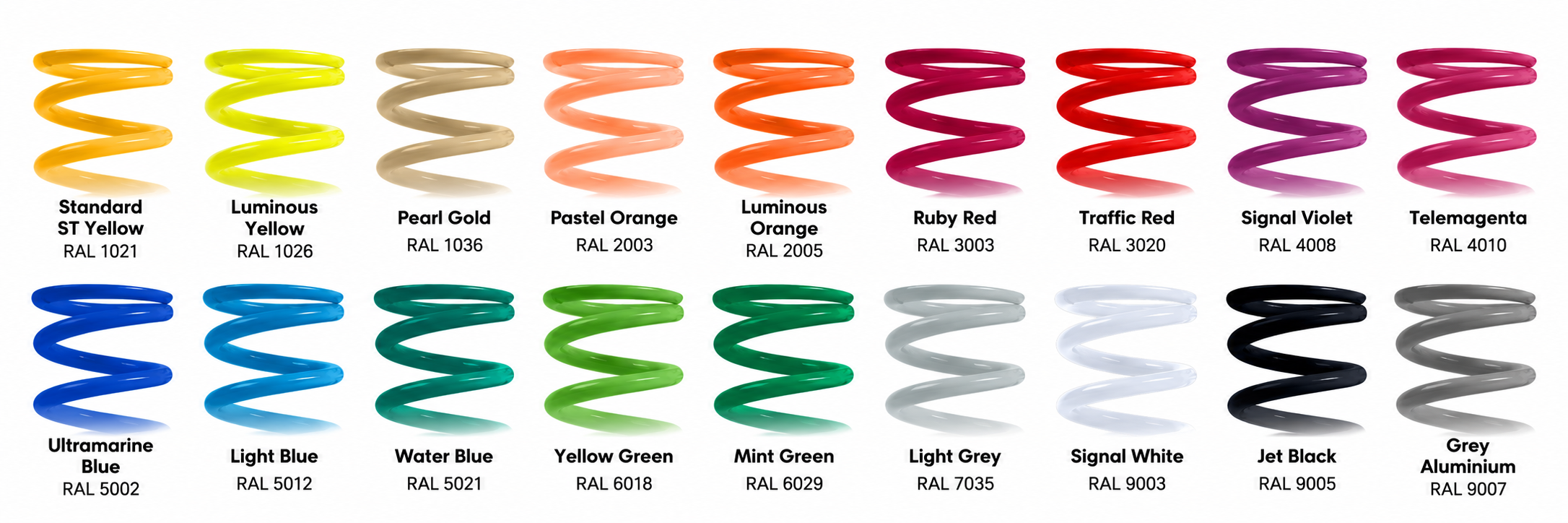

SPRING COLOUR
Choose from 18 spring colours, including the standard ST yellow, to complement your vehicle.

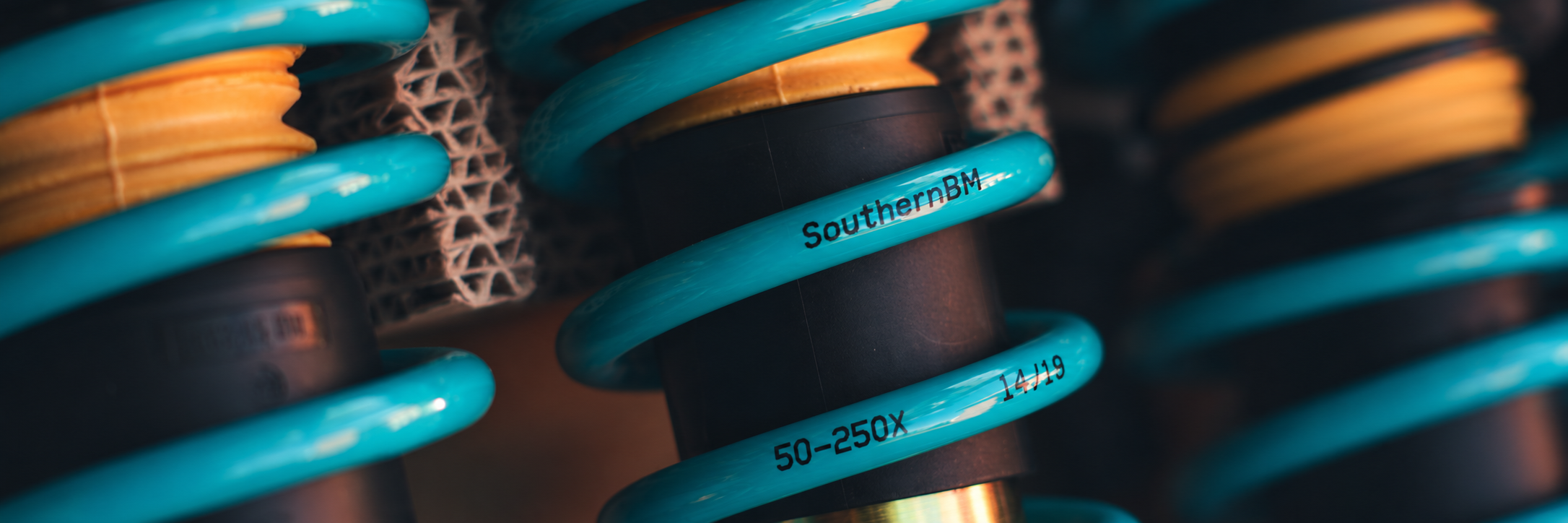

SPRING MARKING
Add your own wording to the springs with an individual marking of up to 25 letters. Your personal marking is additional to the manufacturer’s identification markings.
Select your preferred customisations from the product options when ordering. Additional charges apply to custom colours and spring markings.
Please allow additional production and delivery time for customised orders.
Product Information
ABOUT ST XTA PLUS 3 COILOVERS
ST XTA plus 3 Coilovers bring three-way adjustable KW damping technology to ST’s performance range. Combining adjustable lowering, a racing spring system and aluminium uniball top mounts, they provide the tools to develop a suspension setup for spirited road driving and track use.
Independent rebound, low-speed compression and high-speed compression adjustment give you greater control over how the suspension responds to body movements and road inputs.
THREE-WAY ADJUSTABLE DAMPING
ST XTA plus 3 allows you to refine three aspects of the damper response:
Rebound — 16 clicks: controls how the suspension extends after compression, helping you refine body control and settling.
Low-speed compression — 24 clicks: influences the response to slower damper movements, such as those associated with braking, acceleration and cornering.
High-speed compression — 24 clicks: influences the response to faster damper movements caused by sharp bumps and track kerbs.
Low-speed and high-speed refer to damper movement, rather than vehicle speed. Separating these adjustments allows more precise tuning of body support and bump response.
The kit comes with vehicle-specific base settings, providing a starting point for further adjustment.
RACING SPRINGS AND ADJUSTABLE TOP MOUNTS
The linear racing spring system provides a consistent spring rate for predictable responses under load. Depending on the application, helper springs maintain main-spring seating as the suspension extends.
Aluminium uniball top mounts allow camber adjustment where supported by the vehicle’s design, helping you tailor the alignment to your tyres and intended use. Caster adjustment is also available on selected applications.
SET YOUR HEIGHT AND REFINE YOUR SETUP
Continuous height adjustment lets you fine-tune the stance within the kit’s specified range. Combined with the damping and alignment adjustments, this provides scope to adapt the suspension as your vehicle setup develops.
Galvanised steel strut housings, composite spring seats with stainless steel inserts, dust protection and bump stops support durability and lasting adjustability.

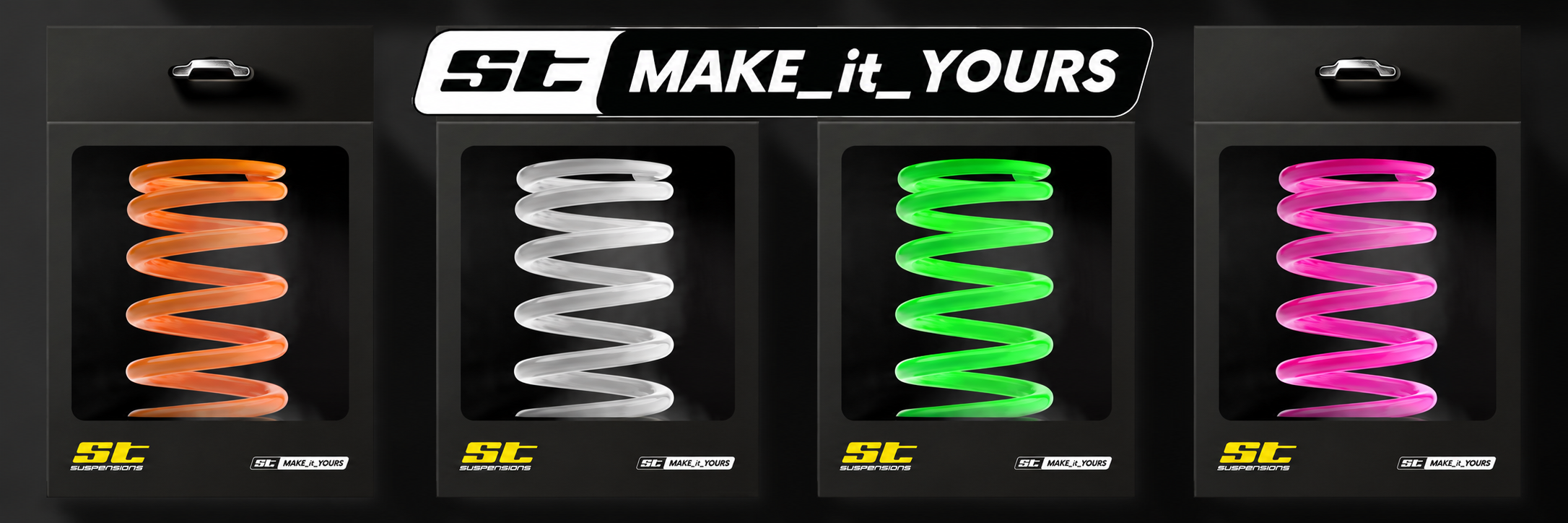

MAKE IT YOURS
Optional spring colours and individual markings let you personalise the appearance of your kit. Alternative spring packages are also available for selected applications, offering further scope for a specialised setup.
Available options are listed on the product page. Customised orders require additional production time.
KEY FEATURES
Three-way adjustable KW damping technology.
16-click rebound adjustment.
Separate 24-click low-speed and high-speed compression adjustment.
Vehicle-specific base settings.
Continuously adjustable lowering.
Linear racing spring system.
Aluminium uniball top mounts, adjustable where supported.
Optional spring colours, markings and spring packages.
ST XTA PLUS 3 OR ST XTA?
ST XTA combines adjustable rebound damping with a racing spring system and uniball top mounts.
ST XTA plus 3 adds independent low-speed and high-speed compression adjustment. This gives you more control over both body support and bump response, making it particularly useful when developing a setup around track driving, different tyres or other vehicle modifications.
Please refer to the Key Details section and model compatibility list for this kit’s lowering range, top-mount configuration, suspension requirements and fitment restrictions.
Models
MINI
F55 / F56 Hatch (2014+):
Cooper D, Ray (One), Cooper, Cooper S, JCW, JCW GP
