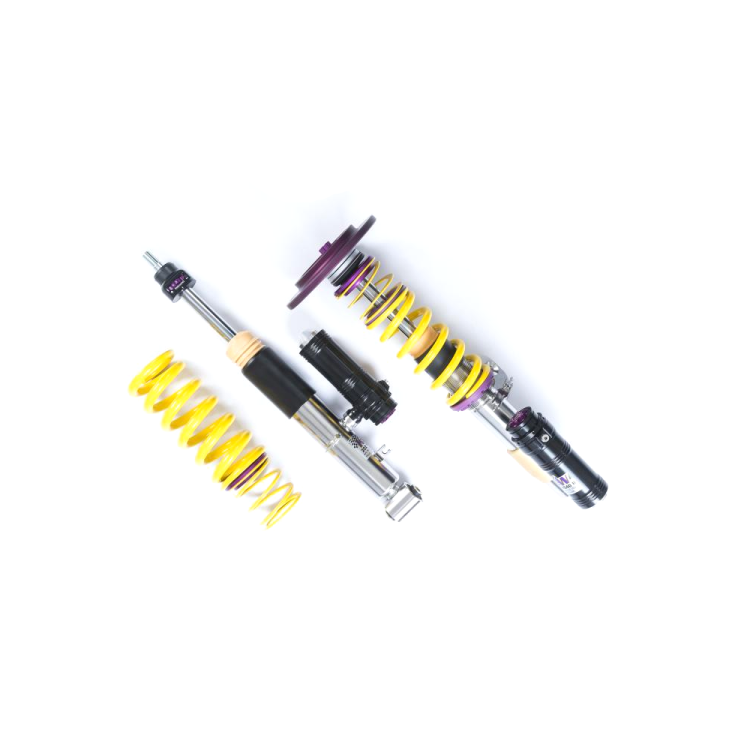

KW Variant 3 (V3) Clubsport Coilover Set incl. Top Mounts - F80 M3, F82 M4
For many years, the KW automotive GmbH is the epitome for premium products in car tuning and automobile refinement. KW offers its customers the largest suspension programme world-wide. The entire assortment – from springs over sports suspensions to coilover suspensions “inox line” in four damping versions – such a variety of products is unsurpassed on the market. Moreover, KW automotive GmbH develops racing solutions for national and international motor sports. The racing programme KW competition is successfully used by numerous racing teams on many race tracks around the world.
Adjustable front lowering 15-40 mm Adjustable rear lowering 15-40 mm Axle load front -990kg Axle load rear -1,170kg Damping adjustment Compression (12 click) & rebound (16 click) adjustment
Remote canister not included on 2-way kit. Suitable for F80 M3 Sedan and F82 M4 Coupe with or without Electronic Damper Control (EDC) suspension. The KW Cancellation kit is additionally required for for cars fitted with factory EDC. Not for F83 M4 Convertible.
All photos shown are for demonstration purposes only and may not reflect the actual specifications of this kit. Please contact us if you have any questions.
Conditions / Instructions
Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
When using original tyres, wheel offset spacers may be required.
For cars which have electronic dampers, make sure they are shut down. Vehicle specific electronical damper shut-downs optionally available to order.
Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
For rear axle camber adjustment we recommend the installation of the optionally available adjustable control arm set from KW.
Clubsport coilover with top mount: only with front axle top mount available.
About KW Variant 3 (V3) Clubsport Coilovers
The KW Clubsport coilovers utilize the uncompromising transfer of technology from the world of motorsports to track day/street driving.
The KW Clubsport coilovers combine KW's high-end racing technology with maintenance-free KW OEM components and part certificate.
This will provide you the ideal product to take full potential of your sports car during track days, sports car driving clinics, enthusiast drives on Grand Prix circuits and on tracks such as the Nürburgring Nordschleife.
Designed on the toughest race track in the world: The Nürburgring Nordschleife
The KW Clubsport coilovers provide the ability to adjust for different track surfaces, sharp turns and abrupt elevation changes. The KW Clubsport is in its home environment on the famous twists and turns of the 20.8 km long Nürburgring Nordschleife circuit.
As a supporting suspension manufacturer to numerous different racing series. KW had claimed 6 ADAC Zurich 24-hour victories within 10 years at the famous Nürburgring circuit and the ADAC GT Masters 2011 Championship. More then 70 race teams are equipped with KW coilover systems in the VLN Endurance Championship series. These race teams rely on KW's racing expertise and experience for their vehicle setup. This information is mirrored in the development of the KW Clubsport coilover systems.
The KW V3 Clubsport and KW V4 Clubsport coilovers (with separate reservoir) provide the user numerous adjustment settings. This allows to user to dial the suspension setup to his/hers driving style and to adjust or match the tire/wheel setup of the vehicle.
Rebound and compression dampening is independently adjustable by hand via the integrated click adjusters. Adjustable top mounts are optional on certain applications.
KW V3 Clubsport Racing Technology
The rebound adjuster knob provides 16 precise clicks to personally dial in your desired vehicle setup. Thus allowing you the possibility to influence wheel/tire loads or take into concern chassis characteristics. Independent from rebound adjustment is the compression dampening, 12 precise adjustment clicks are provided to adjust the low-speed dampening. Most notably used to dial in wheel/tire setup.
These adjustment features allow the user to dial in vehicle weight, wheel/tire combinations, various road surfaces and environmental conditions.
Independently adjustable rebound and compression damping technology
Stainless steel technology "inox-line"
Continuous lowering
Tested adjustment range
High-quality components for a long-term durability
Adjustable rebound damping with 16 precise clicks
Adjustable compression damping with 12 precise clicks
Unique, independent damping force adjustment
Optional spherical bearing aluminum top mounts
Setup: Application and damper settings
The KW V3 Clubsport coilovers provide the ideal adjustment range for race tracks such as the Nürburgring Nordschleife and other racing circuits.
Models
3 Series / F80 M3 (2014-2019) / M3
3 Series / F80 M3 (2014-2019) / M3 Competition
3 Series / F80 M3 (2014-2019) / M3 CS
4 Series / F82 / F83 (2014-2019) / M4
4 Series / F82 / F83 (2014-2019) / M4 Competition
4 Series / F82 / F83 (2014-2019) / M4 CS
