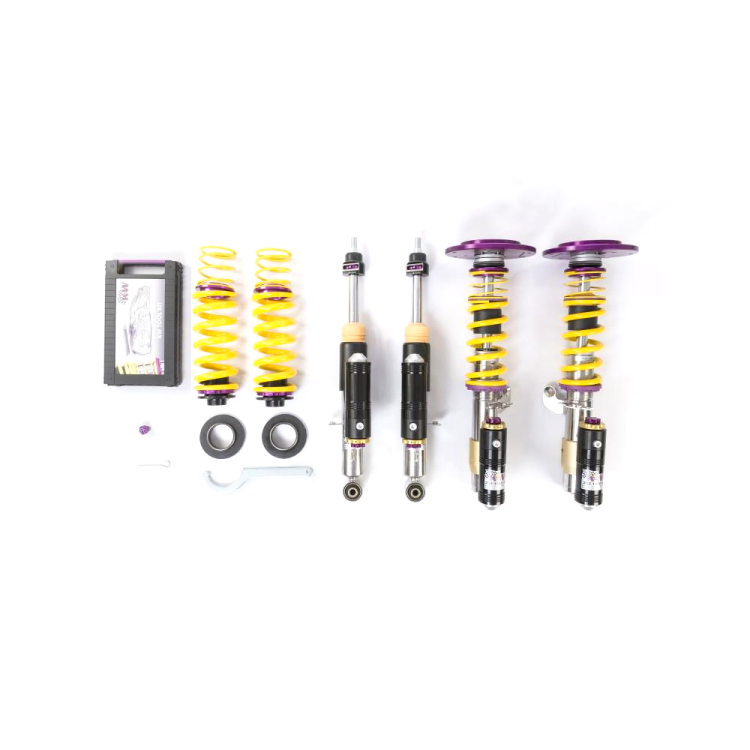

KW Variant 4 (V4) Clubsport Coilover Set incl. Top Mounts - F87 M2 CS
For many years, the KW automotive GmbH is the epitome for premium products in car tuning and automobile refinement. KW offers its customers the largest suspension programme world-wide. The entire assortment – from springs over sports suspensions to coilover suspensions “inox line” in four damping versions – such a variety of products is unsurpassed on the market. Moreover, KW automotive GmbH develops racing solutions for national and international motor sports. The racing programme KW competition is successfully used by numerous racing teams on many race tracks around the world.
Adjustable front lowering 15-40 mm Adjustable rear lowering 20-45 mm Damping adjustment High speed compression (14 click), low speed compression (6 click) & rebound (16 click) adjustment
Suitable for F87 M2 CS with or without Electronic Damper Control (EDC) suspension. The KW Cancellation kit for electronic damping is provided in coilover set for cars fitted with factory EDC.
All photos shown are for demonstration purposes only and may not reflect the actual specifications of this kit. Please contact us if you have any questions.
Conditions / Instructions
Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
For cars which have electronic dampers, make sure they are shut down. Vehicle specific electronical damper shut-downs are included in this package.
Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
For rear axle camber adjustment we recommend the installation of the optionally available adjustable control arm set from KW.
Clubsport coilover with top mount: only with front axle top mount available.
About KW Variant 4 (V4) Clubsport Coilovers
The KW Clubsport coilovers utilize the uncompromising transfer of technology from the world of motorsports to track day/street driving.
The KW Clubsport coilovers combine KW's high-end racing technology with maintenance-free KW OEM components and part certificate.
This will provide you the ideal product to take full potential of your sports car during track days, sports car driving clinics, enthusiast drives on Grand Prix circuits and on tracks such as the Nürburgring Nordschleife.
Designed on the toughest race track in the world: The Nürburgring Nordschleife
The KW Clubsport coilovers provide the ability to adjust for different track surfaces, sharp turns and abrupt elevation changes. The KW Clubsport is in its home environment on the famous twists and turns of the 20.8 km long Nürburgring Nordschleife circuit.
As a supporting suspension manufacturer to numerous different racing series. KW had claimed 6 ADAC Zurich 24-hour victories within 10 years at the famous Nürburgring circuit and the ADAC GT Masters 2011 Championship. More then 70 race teams are equipped with KW coilover systems in the VLN Endurance Championship series. These race teams rely on KW's racing expertise and experience for their vehicle setup. This information is mirrored in the development of the KW Clubsport coilover systems.
The KW V3 Clubsport and KW V4 Clubsport coilovers (with separate reservoir) provide the user numerous adjustment settings. This allows to user to dial the suspension setup to his/hers driving style and to adjust or match the tire/wheel setup of the vehicle.
Rebound and compression dampening is independently adjustable by hand via the integrated click adjusters. Adjustable top mounts are optional on certain applications.
KW V4 Clubsport coilovers The technology of the 24-hour race winner
Using the Nordschleife as it's testing grounds and the 7-post rig, KW developed it's V4 Clubsport coilover kit. Wheel loads, vehicle weight and chassis reinforcements (increased body stiffness) can all be taken into consideration with adjustment capabilities of the V4 Clubsports. Similar to KW V4 Racing coilovers, low-speed and high-speed compression adjustment is done via KW's patented two-valve control on the reservoir.
By hand, you can vary the low-speed compression damping with six precise clicks at the purple adjustment wheel. The gold adjustment wheel allows the user to change the high-speed compression damping with 14 precise clicks. Rebound adjust is provided with 16 adjustable clicks providing a noticeable change the rebound adjustment setting. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.
16 precise clicks in rebound adjustment dampening
Adjustable compression damping with 6 clicks in low-speed range and 14 precise clicks in the high-speed range
Continuous lowering
Tested adjustment range
High-quality components for long-term durability
Independent damping force adjustability with aluminum spherical bearing top mounts available
Setup: Application and damper settings
KW V4 Clubsport coilovers provide the flexibility to quickly dial their vehicle setup for various race tracks events and circuits.
Models
2 Series / F87 M2 (2016-2021) / M2 CS
