Mosselman Oil Thermostat N54/N55 (E-Series)

Mosselman Turbo Systems is a Dutch manufacturer of high-quality performance parts designed specifically for use in BMW and MINI cars. Mosselman has been in the tuning business for over 40 years and the vast majority of their products has been designed, tested and manufactured in-house. If you own a BMW or MINI, you can bet your bottom dollar Mosselman have the parts you need to make it go faster.
$619.00

Product Information

THE NEXT LEVEL OF TEMPERATURE CONTROL

The N54, N55 and S55 engines are no strangers to oil cooling problems, that’s why we recommend installing the MSL Oil Thermostat, especially for cars that are tuned. The standard oil temperature will reach around 120°C (250°F) with a normal driving style. The MSL Oil Thermostat will open at a lower temperature than the standard oil thermostat (at 85°C / 185°F) and will keep the temperature stable between 95 and 105°C (200 and 220°F), depending on the car model.

Installing the MSL thermostat ensures a cooler oil temperature which will result in more stable performance, but above all this improves the reliability of the engine. It is equipped with a real thermostat, not an always open solution. The oil will still reach the operating temperature at the same time as a stock thermostat.

Installation Instructions

Suitable for E82 135i Coupe, E88 135i Convertible, E82 1 Series M (1M), E90 335i Sedan, E91 335i Touring, E92 335i Coupe, E93 335i Convertible and E89 Z4 35i & 35is Roadster models fitted with N54 or N55 engine.


MSL OIL THERMOSTAT

A highly recommended upgrade for N54, N55 and S55 engines.

  • 20°C Lower Than Stock
    Operating temperature 20°C lower than stock.

  • Rock Solid Housing
    CNC machined housing.

  • Real Thermostat
    Equipped with a real thermostat, not an always open solution (for use in hot and cold climates).

  • Quick Installation
    Takes only 30 minutes to install.

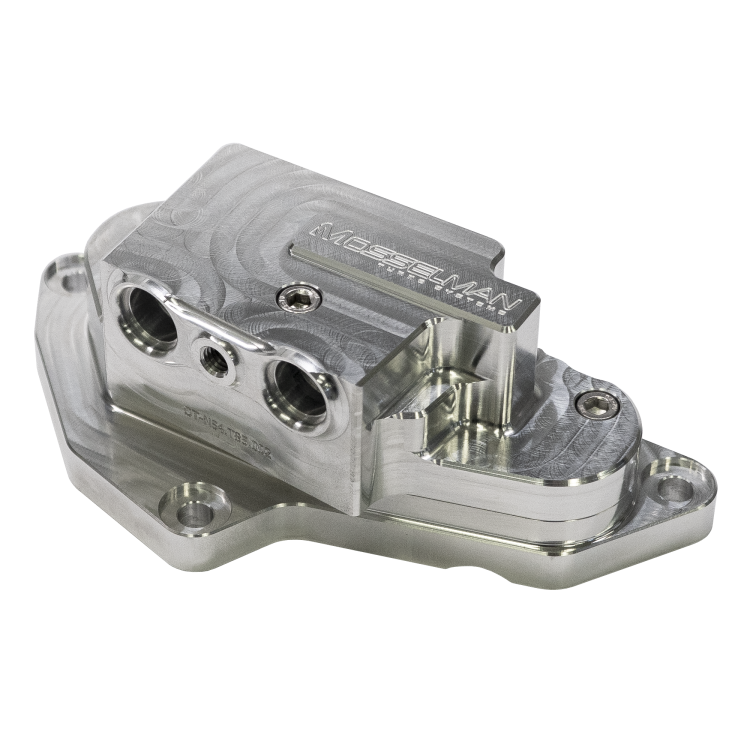

The Thermostat is plug-and-play and made out of a solid block of high-grade aluminium at Mosselman's own facility. It is equipped with a real thermostat, not an always open solution. The oil will still reach the operating temperature at the same time as a stock thermostat.

Additionally to the thermostat, Mosselman have oil cooler kits for the 1-Series E8x and the 3-Series E9x. We advise the Oil Cooler Kit for cars that use the full performance of the car during track use. The kits are available as single or twin cooler kits. The single cooler kit replaces the OEM cooler on the right side of the car, the twin kit will add an extra cooler on the left side of the car.


EXPERT'S ADVICE:

"The N54 engine is no stranger to oil cooling problems, that’s why we recommend installing the MSL Oil Thermostat. The standard oil thermostat will reach around 120 degrees Celsius with a normal driving style. The MSL Oil Thermostat will open at a lower temperature than the standard oil thermostat (at 85 degrees Celsius) and will keep the temperature stable between 95 and 105 degrees Celsius, depending on the car model. Installing the MSL thermostat ensures a cooler oil temperature which will result in more stable performance, but above all this improves the reliability of the engine. It is recommended to install the thermostat, especially for cars that are tuned.

The Thermostat is plug-and-play and made out of a solid block of high-grade aluminium at our own facility. It is equipped with a real thermostat, not an always open solution. The oil will still reach the operating temperature at the same time as a stock thermostat.

Note: The Oil Thermostat Installation kit prevents the Oil Thermostat from leaking and is highly recommended when installing the MSL Oil Thermostat. The kit includes 2 x O-ring for the oil hose and 1x rubber oil filter housing gasket. We advise to add it to your order."

MARK HENDRIKX - AUTOMOTIVE ENGINEER AT MOSSELMAN


FREQUENTLY ASKED QUESTIONS


Does the MSL Oil Thermostat have a real thermostat?
Yes, it is equipped with a real thermostat, not an always open solution. The oil will still reach the operating temperature at the same time as a stock thermostat.

Do I need new gaskets for the installation?
Yes, we highly recommend replacing the gasket and 0-rings to prevent the thermostat from leaking. We have an installation kit available, it includes 2 x O-ring for the oil hose and 1x rubber oil filter housing gasket. We advise to add it to your order.

Installation Time
The thermostat is plug-and-play, which means that you don't have to make modifications to install the thermostat. Just remove the old one and replace it with our MLS Oil Thermostat. The installation time will be approximately 30 minutes.


Models
  • 1 Series / E82 / E88 (2007-2013) / 1 Series M (1M)
  • 1 Series / E82 / E88 (2007-2013) / 135i N54
  • 1 Series / E82 / E88 (2007-2013) / 135i N55
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / 335i N54
  • 3 Series / E90 / E91 / E92 / E93 (2005-2013) / 335i N55
  • Z Series / E89 Z4 (2009-2016) / Z4 35is
  • Z Series / E89 Z4 (2009-2016) / Z4 35i
