For anyone involved in tuning late-model BMWs, the June-2020 production change became a very familiar dividing line.

From 06/2020 onwards, BMW, MINI and Toyota GR Supra models began appearing with a newer generation of protected Bosch engine control units. Petrol models use Bosch MG1-based DME8 ECUs, while diesel applications use MD1-based DDE8 ECUs.

The additional security prevented the traditional OBDII tuning access available on earlier vehicles, meaning the ECU first had to be unlocked before tuning could begin.

For the better part of the next six years, that unlock became one of the biggest hurdles when tuning a late-model BMW.

For a long time, FEMTO in Finland was effectively the only practical route available for owners wanting to unlock these protected ECUs.

The solution worked, and FEMTO played an important role in making tuning possible on vehicles that would otherwise have remained locked. The challenge for Australian owners was simply geography — the DME had to travel to Europe.

The ECU would be removed from the vehicle, sent to SouthernBM, prepared for international shipping, forwarded to Finland for unlocking and then shipped back to Melbourne before being returned to the customer.

Our FEMTO service typically allowed around 7–10 business days for the international part of the process, with additional time required for local freight depending on the customer's location.

That meant tuning a 06/2020+ BMW, MINI or Toyota GR Supra involved more than choosing a tune. Owners also had to consider vehicle downtime, international shipping, insurance, customs and the cost of safely sending a valuable engine control unit halfway around the world and back.

It is worth recognising how important the FEMTO solution was. For several years, it provided the pathway that allowed these protected vehicles to be tuned and gave owners access to platforms such as bootmod3, MHD and MG Flasher when there was no practical alternative.

In July 2023, we released a video explaining the FEMTO DME unlock process and exactly what was involved for owners of these newer vehicles.

At the time, sending the ECU overseas was simply part of the process. The DME was removed, shipped to SouthernBM, sent to Finland, unlocked and then returned before the next stage of tuning could begin.

Looking back at that process now provides an interesting comparison with how much has changed in only three years.

If you follow BMW tuning workshops, manufacturers or enthusiasts on social media, you may have noticed plenty of discussion around DME8/DDE8 unlocking recently.

The important development isn't that one workshop has suddenly discovered a secret solution. It is that the technology and equipment required to unlock many of these control units has now become accessible to professional tuning workshops.

For supported Bosch MG1 DME8 and MD1 DDE8 control units, the Bench Unlock can now be carried out locally without sending the ECU halfway around the world.

At SouthernBM, we can now perform supported 06/2020+ BMW, MINI and Toyota GR Supra DME8/DDE8 Bench Unlocks in-house at our Melbourne workshop.

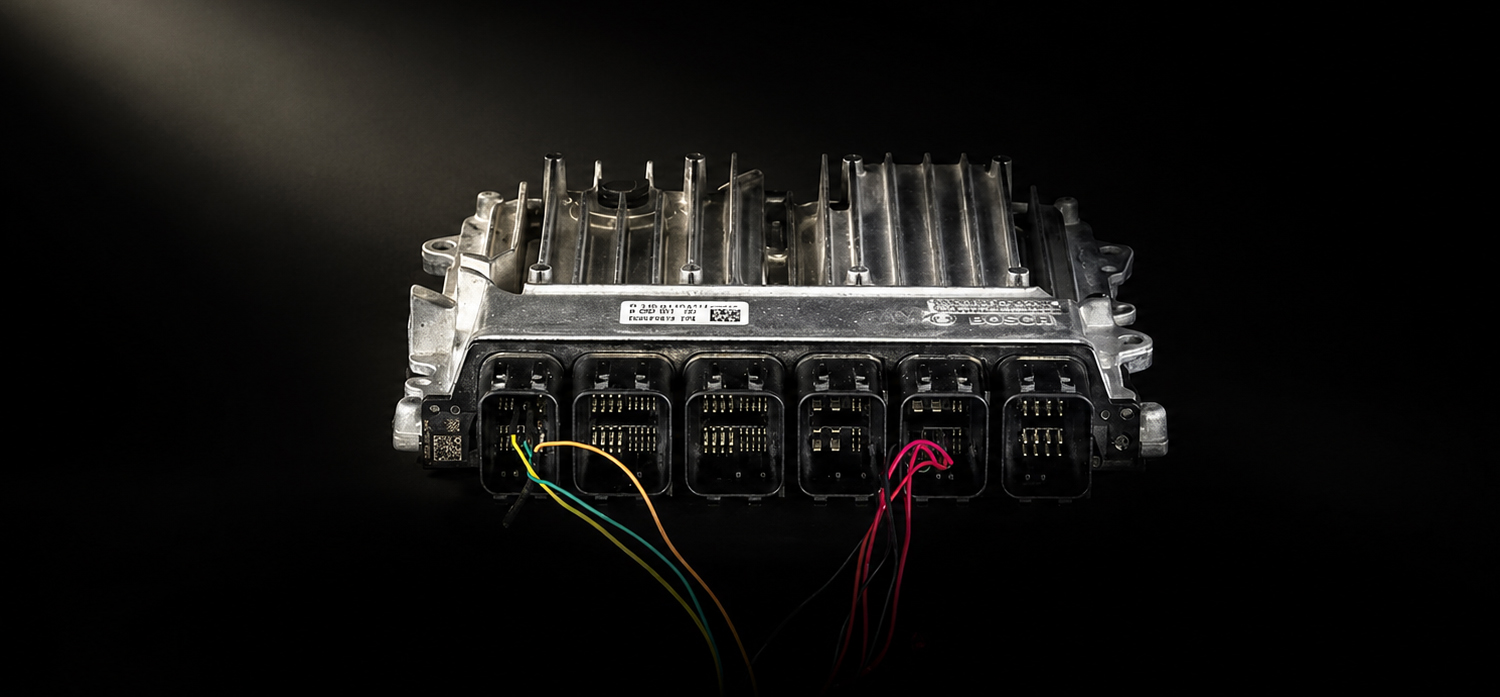

The DME/DDE is removed from the vehicle and connected externally through its factory electrical connector. The control unit remains sealed throughout the process, with no need to open the ECU or access the internal circuit board.

The actual unlock can be completed in around 30 minutes, and mail-in DMEs received during business hours can generally be unlocked and dispatched back the same day.

That is quite a change from the process we were explaining in 2023.

It's important to understand that a DME/DDE Bench Unlock is not a performance tune.

The unlock doesn't increase boost, change ignition timing or add horsepower by itself. It removes the factory access restriction that prevents compatible tuning from being carried out.

Once unlocked, supported vehicles can be flashed through the OBDII diagnostic port using popular tuning platforms including bootmod3, MHD and MG Flasher, as well as compatible custom ECU tuning solutions.

That means the DME doesn't have to be removed every time you want to flash a different calibration. The Bench Unlock is the step that opens the door; the tune you choose afterwards is what determines how the vehicle performs.

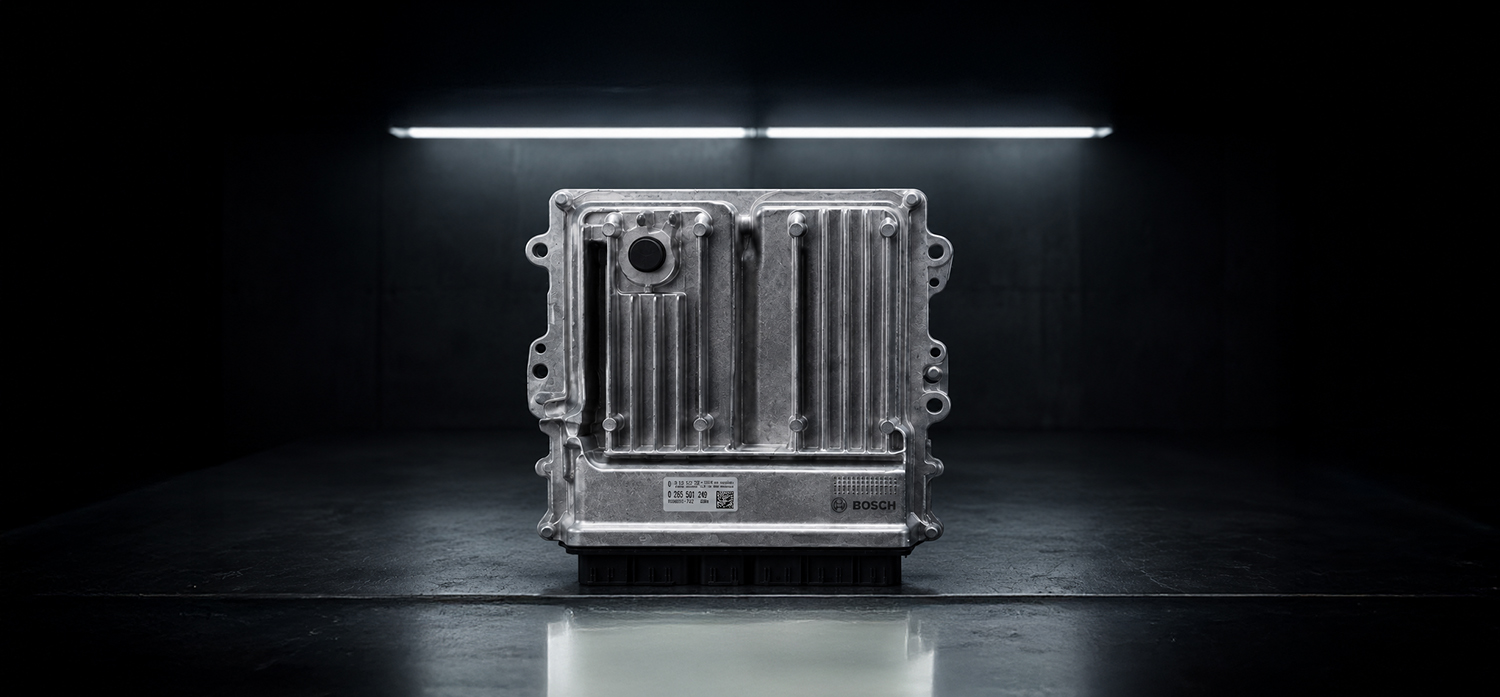

The 06/2020+ generation covers a range of Bosch MG1-based DME8 petrol ECUs and Bosch MD1-based DDE8 diesel ECUs.

Common supported petrol control units include Bosch MG1CS024, MG1CS049 and MG1CS201 TC298, along with other supported MG1 DME8 variants.

Supported diesel applications include MD1CP032, MD1CS001 and other compatible Bosch MD1-based DDE8 control units.

The exact ECU fitted can vary depending on the vehicle, engine, production date and software version, so compatibility should always be confirmed before proceeding.

Our new BMW DME8/DDE8 Bench Unlock contains further information on supported ECUs, engines and common vehicle applications.

The obvious benefits are reduced turnaround time and removing the cost and complexity of international freight.

But the bigger benefit is that late-model ECU tuning has just become much more accessible.

For some owners, sending a DME worth thousands of dollars overseas was enough of a hurdle to put tuning into the maybe one day category. Even if they were comfortable with the technical side of tuning, removing an ECU, international shipping and having the vehicle immobilised while waiting for it to return added another layer of commitment.

With local Bench Unlocking, much of that friction disappears.

Melbourne customers can have the entire vehicle booked in and have the removal, unlock and refitting handled for them.

Customers who are comfortable supplying the ECU themselves can bring the removed DME/DDE to us and, by appointment, generally wait while it is unlocked.

Interstate customers can ship the ECU to Melbourne rather than overseas, with most units able to be turned around the same day they arrive.

It simply makes the first step towards tuning easier.

The timing is particularly interesting because many of the engines affected by the 06/2020 security changes have already developed excellent reputations within the tuning community.

BMW's B58 has become one of the most widely tuned modern BMW engines and can be found in vehicles including the M240i, M340i, M440i, X3 M40i, Z4 M40i and Toyota GR Supra.

The S58, found in vehicles such as the G87 M2, G80/G81 M3, G82/G83 M4, X3M and X4M, has likewise demonstrated significant tuning potential across everything from relatively mild road-car calibrations through to extensively modified builds.

The same applies across B48, N63 and S63 petrol applications, along with supported diesel platforms using DDE8 control units.

The hardware has never been the problem. The hurdle was gaining access to the ECU.

Making that access easier should only encourage further development of these platforms as more cars are tuned, more calibrations are developed and more owners explore what their cars are capable of.

There has been plenty of discussion around these new unlock capabilities recently, and that's a positive development for the wider tuning community.

This isn't about suggesting SouthernBM is the only place capable of performing the procedure. The more widely available a reliable solution becomes, the easier it is for enthusiasts to access tuning without unnecessary cost, delay or complexity.

What we would recommend — as with any work involving the vehicle's engine control unit — is choosing someone who understands the vehicle as well as the tool performing the unlock.

Identifying the correct ECU, safely removing and reinstalling it, understanding the appropriate tuning pathway afterwards and knowing what to do if the vehicle has previously been tuned or receives a software update are all part of the process.

The unlock itself may now take less than half an hour. Experience with the car around it still matters.

When these protected DMEs began appearing around June 2020, nobody knew how long it would take before local unlocking became a practical reality.

By 2023 we were explaining why your BMW's DME needed to travel from Melbourne to Finland and back before you could tune the car.

Now, approximately six years after the introduction of these protected DME8 and DDE8 control units, supported ECUs can be Bench Unlocked here in Australia, often in the same day.

For owners of late-model BMW, MINI and Toyota GR Supra vehicles, that means less downtime, less freight, lower overall cost and one less obstacle between the car you have and the car you want to build.

And for platforms such as the B48, B58 and S58, which have already shown just how much tuning potential they have, making ECU access easier should make the next few years particularly interesting.

Our new BMW, MINI & Toyota GR Supra DME8/DDE8 Bench Unlock service covers a wide range of supported 06/2020+ Bosch MG1 and MD1 ECUs, with options to book your vehicle into our Melbourne workshop, supply the removed DME/DDE in person, or mail the ECU to us from anywhere in Australia.
